KR2404EX
KR2404EXTractor Configurations and SpecificationsKR2404EXShangchai six cylinder engine, turbocharger, inter-cooling,rated power:177kw, fully enclosed cabwith front/rear camera,air heaterandair conditioner, transmission:16F+4Rgears, synchronizershift, u
Order Online Download

Features
Parameter

KR2404EX Tractor Configurations and Specifications

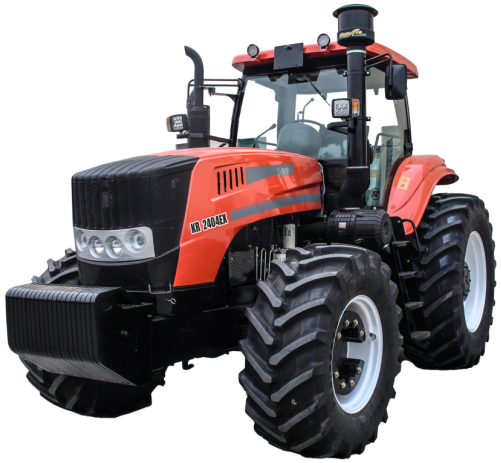

KR2404EX

Shangchai six cylinder engine, turbocharger, inter-cooling, rated power:177kw, fully enclosed cab with front/rear camera, air heater and air conditioner, transmission: 16F+4Rgears, synchronizershift, unit frame chassis, driving system with modularizationstructure, international brand front axle, construction machinery rear axle, wide tyre, caliper disc brake, replaceable PTO shaft,PTO shaft rotation speed: 540/1000r/min, fully hydraulic front wheel steering, four groups hydraulic output, plough depth control method by position, floating control, and international brand suspension mechanism of rear-mounted Category III. Option: Dual rear tyre, Electrical lifting system, auto-steering system.

Model			KR2404EX
Engine	Rated Power/speed	kW(HP)/r/min	177(240)/2200
Engine	Engine Displacement	(L)	8.82
Drive Type		/	4×4
Dimension(Length/Width/Height)		mm	5675/2645/3100
Wheel Base		mm	2880
Track(Front wheel)		mm	2050-2250
Track(Rear wheel)		mm	2000-2398
Min. Ground Clearance		mm	480
Min. Turning Radius		mm	7000
Machine Weight		kg	9352
Rated Traction Force		kN	49
Max. Traction Force		kN	73
No. of gears			16F+4R
Forward Gear	Speed	km/h	3-34
Reverse Gear	Speed	km/h	4-20
Tyre Model	Front Tires	/	540/65R28
Tyre Model	Rear Tires	/	650/65R38
Power-output shaft Type		/	Rear position, independent
power-output shaft rated Speed		r/min	540/1000
Max. Lifting Force		kN	63
Fuel tank capacity		(L)	410
Hydraulic tank capacity		(L)	80
Front ballast		Kg	1000
Front wheel ballast		Kg	200
Rear wheel balast		Kg	400
Voltage		(V)	12
