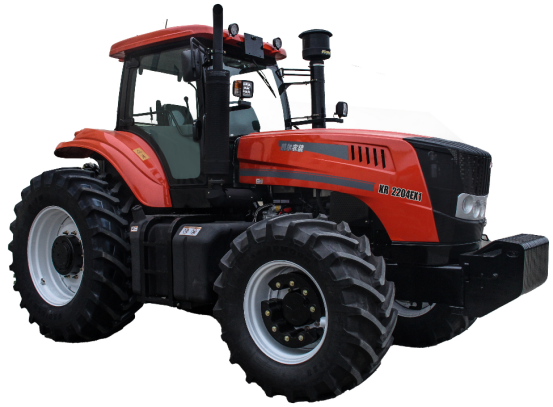

KR2204EX1
Dongfeng Cummins six cylinder engine, turbocharger, inter-cooling, 12 hours rated power: 162kw, full...
Order Online Download

Features
Parameter

KR2204EX1 Tractor Configurations and Specifications

KR2204EX1

Shangchai six cylinder engine, turbocharger, inter-cooling, rated power: 162kw, fully enclosed cab with front/rear camera, air heater and air conditioner, transmission: 16F+4Rgears, synchronizershift, unit frame chassis, driving system with modularizationstructure, international brand front axle, construction machinery rear axle, radial tyre, single rear tire, caliper disc brake, replaceable PTO shaft,PTO shaft rotation speed: 540/1000r/min, fully hydraulic front wheel steering, four groups hydraulic output, plough depth control method by position, floating control, and international brand suspension mechanism of rear-mounted Category III. Option: Dual rear tyre, Electrical lifting system, auto-steering system, creeper gear, wide tyre 540/65R28，650/65R38, dual rear tyre.

Model			KR2204EX1
Engine	Rated Power/speed	kW(HP)/r/min	162(220)/2200
Engine	Engine Displacement	(L)	8.82
Drive Type		/	4×4
Dimension(Length/Width/Height)		mm	5675/2385/3100
Wheel Base		mm	2880
Track(Front wheel)		mm	1830-2204
Track(Rear wheel)		mm	1860-2384
Min. Ground Clearance		mm	480
Min. Turning Radius		mm	6000
Machine Weight		kg	9212
Rated Traction Force		kN	48
Max. Traction Force		kN	72
No. of gears			16F+4R
Forward Gear	Speed	km/h	3-34
Reverse Gear	Speed	km/h	4-20
Tyre Model	Front Tires	/	16.9R28
Tyre Model	Rear Tires	/	20.8R38
Power-output shaft Type		/	Rear position, independent
power-output shaft rated Speed		r/min	540/1000
Max. Lifting Force		kN	63
Fuel tank capacity		(L)	410
Hydraulic tank capacity		(L)	80
Front ballast		Kg	1000
Front wheel ballast		Kg	200
Rear wheel balast		Kg	400
Voltage		(V)	12
