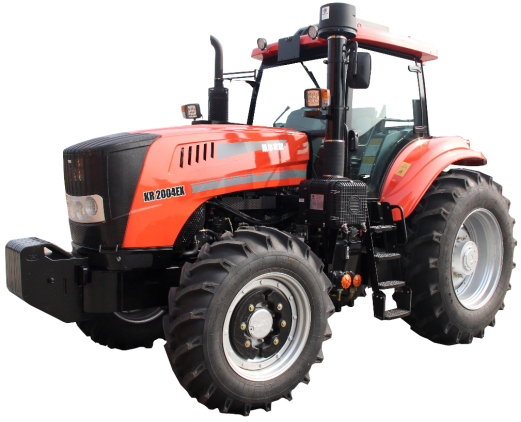

KR2004EX
KR2004EXTractor Configurations and SpecificationsKR2004EXWeichaisix cylinder engine, turbocharge, inter-cooling, rated power:147 kw, fully enclosed cabwith front/rear camera,air heaterandair conditioner, transmission:16F+4Rgears, synchronizershift, unitframe
Order Online Download

Features
Parameter

KR2004EX Tractor Configurations and Specifications

KR2004EX

Weichaisix cylinder engine, turbocharge, inter-cooling, rated power:147 kw, fully enclosed cab with front/rear camera, air heater and air conditioner, transmission: 16F+4Rgears, synchronizershift, unit frame chassis, driving system with modularizationstructure, international brand front axle, construction machinery rear axle, radial tyre, single rear tire, caliper disc brake, replaceable PTO shaft,PTO shaft rotation speed: 540/1000r/min, fully hydraulic front wheel steering, four groups hydraulic output, plough depth control method by position, floating control, and international brand suspension mechanism of rear-mounted Category III. Option: Dual rear tyre, Electrical lifting system, auto-steering system, creeper gear, wide tyre420/70R28；580/70R38, wide tyre 540/65R28，650/65R38, dual rear tyre, rear wheel ballast 400kg.

Model			KR2004EX
Engine	Rated Power/speed	kW(HP)/r/min	147(200)/2200
Engine	Engine Displacement	(L)	6.75
Drive Type		/	4×4
Dimension(Length/Width/Height)		mm	5730/2390/3070
Wheel Base		mm	2728
Track(Front wheel)		mm	1814 -2220
Track(Rear wheel)		mm	1860 - 2384
Min. Ground Clearance		mm	500
Min. Turning Radius		mm	5100
Machine Weight		kg	7916
Rated Traction Force		kN	41
Max. Traction Force		kN	62
No. of gears			16F+4R
Forward Gear	Speed	km/h	3-31
Reverse Gear	Speed	km/h	5-26
Tyre Model	Front Tires	/	16.9R28
Tyre Model	Rear Tires	/	20.8R38
Power-output shaft Type		/	Rear position, independent
power-output shaft rated Speed		r/min	540/1000
Max. Lifting Force		kN	44
Fuel tank capacity		(L)	280
Hydraulic tank capacity		(L)	57
Front ballast		Kg	600
Front wheel ballast		Kg	200
Rear wheel balast		Kg	400
Voltage		(V)	12
