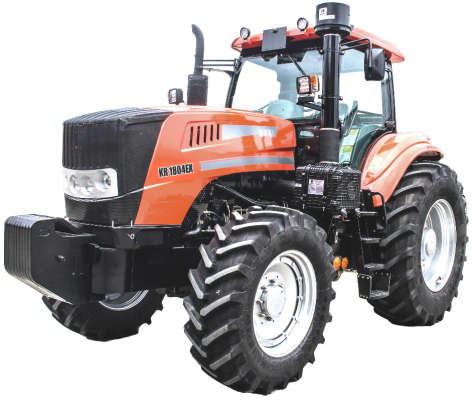

KR1804EX
KR1804EXTractor Configurations and SpecificationsKR1804-EXWeichaisix cylinder engine, turbocharge, inter-cooling, rated power:132.5 kw, fully enclosed cabwith front/rear camera,air heaterandair conditioner, transmission:16F+4Rgears, synchronizershift, unitfr
Order Online Download

Features
Parameter

KR1804EX Tractor Configurations and Specifications

KR1804-EX

Weichaisix cylinder engine, turbocharge, inter-cooling, rated power:132.5 kw, fully enclosed cab with front/rear camera, air heater and air conditioner, transmission: 16F+4Rgears, synchronizershift, unit frame chassis, driving system with modularizationstructure, international brand front axle, construction machinery rear axle, radial tyre, single rear tire, caliper disc brake, replaceable PTO shaft,PTO shaft rotation speed: 540/1000r/min, fully hydraulic front wheel steering, four groups hydraulic output, plough depth control method by position, floating control, and international brand suspension mechanism of rear-mounted Category III. Option: Dual rear tyre, Electrical lifting system, auto-steering system, creeper gear, wide tyre420/70R28；580/70R38, rear wheel ballast 400kg, front wheel ballast (radial tyre).

Model			KR1804EX
Engine	Rated Power/speed	kW(HP)/r/min	132.5(180)/2200
	Engine Displacement	(L)	6.75
Drive Type		/	4×4
Dimension(Length/Width/Height)		mm	5470/2325/3070
Wheel Base		mm	2728
Track(Front wheel)		mm	1874-2222
Track(Rear wheel)		mm	1860-2384
Min. Ground Clearance		mm	460
Min. Turning Radius		mm	5100
Machine Weight		kg	7804
Rated Traction Force		kN	41
Max. Traction Force		kN	61
No. of gears			16F+4R
Forward Gear	Speed	km/h	3-30
Reverse Gear	Speed	km/h	5-25
Tyre Model	Front Tires	/	14.9R28
	Rear Tires	/	18.4R38
Power-output shaft Type		/	后置，独立驱动 Rear position, independent
power-output shaft rated Speed		r/min	540/1000
Max. Lifting Force		kN	44
Fuel tank capacity		(L)	280
Hydraulic tank capacity		(L)	57
Front ballast		Kg	600
Front wheel ballast		Kg	100
Voltage		(V)	12
