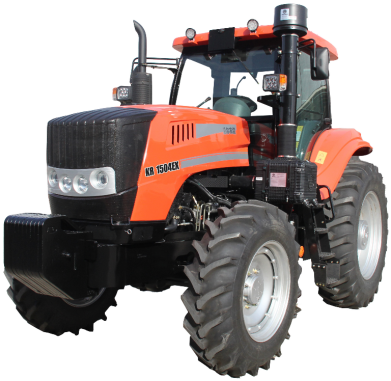

KR1504EX
KR1504EX Tractor Configurations andSpecificationsKR1504EXWeichaisix cylinder engine, turbocharge, inter-cooling, rated power:110.3kw, fully enclosed cabwith rear camera,air heaterandair conditioner, transmission:16F+4Rgears, synchronizershift, unitframe
Order Online Download

Features
Parameter

KR1504EX Tractor Configurations and Specifications

KR1504EX

Weichaisix cylinder engine, turbocharge, inter-cooling, rated power:110.3kw, fully enclosed cab with rear camera, air heater and air conditioner, transmission: 16F+4Rgears, synchronizershift, unit frame chassis, driving system with modularizationstructure, international brand front axle, construction machinery rear axle, radial tyre, single rear tire, caliper disc brake, replaceable PTO shaft,PTO shaft rotation speed: 540/1000r/min, fully hydraulic front wheel steering, four groups hydraulic output, plough depth control method by position, floating control, and international brand suspension mechanism of rear-mounted Category III. Option: Electrical lifting system, auto-steering system.

Model			KR1504EX
Engine	Rated Power/speed	kW(HP)/r/min	110.3(150)/2200
Engine	Engine Displacement	(L)	6.75
Drive Type		/	4×4
Dimension(Length/Width/Height)		mm	5175/2300/3070
Wheel Base		mm	2688
Track(Front wheel)		mm	1698-2122
Track(Rear wheel)		mm	1830-2150
Min. Ground Clearance		mm	500
Min. Turning Radius		mm	5100
Machine Weight		kg	6220
Rated Traction Force		kN	33
Max. Traction Force		kN	49
No. of gears			16F+4R
Forward Gear	Speed	km/h	3-33
Reverse Gear	Speed	km/h	6-28
Tyre Model	Front Tires	/	14.9R26
Tyre Model	Rear Tires	/	18.4R38
Power-output shaft Type		/	后置，独立驱动 Rear position, independent
power-output shaft rated Speed		r/min	540/1000
Max. Lifting Force		kN	32
Fuel tank capacity		(L)	280
Hydraulic tank capacity		(L)	57
Front ballast		Kg	500
Voltage		(V)	12
