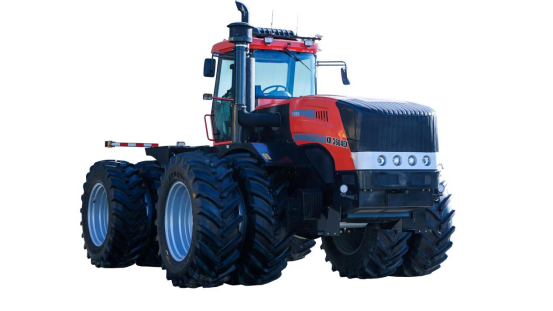

KR3604 Tractor Configurations and Specifications
KR3604 | Weichai electronic fuel injection engine with six cylinders, turbocharger, inter-cooling, rated power of 265 kW. fully enclosed cab with air conditioner and heater. ‘Fast’ transmission case with 24 forward and 12 reverse gear, synchronizer shift. Articulated chassis frame, driving system with modularized structure, construction machinery front and rear axle, caliper disc brake, double front and rear tyre as standard configuration, full hydraulic articulated steering, Five groups of dual action hydraulic output. |
Model Number | KR3604 | ||
Engine | Rated power/speed | kW(HP)/ r/min | 265（360）/2100 |
Drive form | 4×4 | ||
Dimension(Length/Width/Height) | single tyre | mm | 7800 (8100 with suspension)/3088/4100 |
double tyre | mm | 7800 (8100 with suspension)/4190/4100 | |
Wheel Base | mm | 3911 | |
Track | mm | 1960 (single tyre) 3540 ( double tyre) | |
Min. Ground Clearance | mm | 450 | |
Min. turning radius | mm | 7160 | |
Machine Weight | kg | 18630(front & rear double tire) | |
Rated Traction Force | kN | 77 | |
Max. Traction Force | kN | 116 | |
Max. Traction power | kW | 198 | |
Number of Gears | 24F+12R | ||
Front gear | Speed | km/h | 1.6-35.8 |
Reverse gear | Speed | km/h | 1.5-22.5 |
Tyre Model | Front Tires | / | 650/70R42 |
Rear Tires | / | 650/70R42 | |
Max. lifting force | kN | 50 | |
