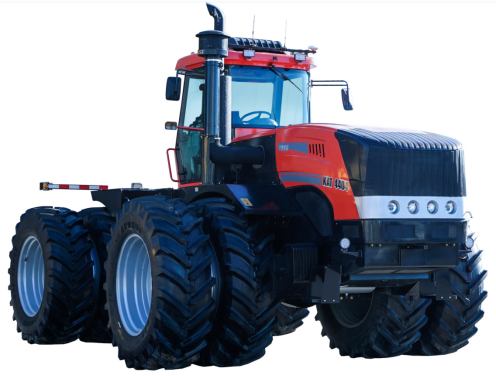

KR 4404 Tractor Configurations and Specifications
KR4404 | Weichai electronic fuel injection engine with six cylinders (turbocharger, inter-cooling), rated power of 323 kW. fully enclosed cab with air conditioner and heater. ‘Fast’ transmission case with 24 forward and 12 reverse gear, synchronizer shift. Articulated chassis frame, driving system with modularized structure, construction machinery front and rear axle, caliper disc brake, double front and rear tyre as standard configuration, full hydraulic articulated steering, five groups of dual action hydraulic output。 Options: 1. air seat 2. Pneumatic output 3. Electric power socket |
Model Number | KR4404 | |||||
Engine | Rate power/speed | kW(HP)/ r/min | 323（440）/2100 | |||
Drive form | 4×4 | |||||
Dimension(Length/Width/Height) | single tyre | mm | 7800 (8100 with suspension)/3088/4100 | |||
double tyre | mm | 7800 (8100 with suspension)/4190/4100 | ||||
Wheel Base | mm | 3911 | ||||
Track | mm | 1960 (single tyre) 3540 ( double tyre) | ||||
Min. Ground Clearance | mm | 450 | ||||
Min. turning radius | mm | 7160 | ||||
Machine Weight | kg | 18630 | ||||
Rated Traction Force | kN | 94 | ||||
Max. Traction Force | kN | 141 | ||||
Max. Traction power | kW | 242 | ||||
Number of Gears | 24F+12R | |||||
Front gear | 速度Speed | km/h | 1.6-35.8 | |||
Reverse gear | 速度Speed | km/h | 1.5-22.5 | |||
Tyre Model | 前轮Front Tires | / | 650/70R42 | |||
后轮 Rear Tires | / | 650/70R42 | ||||
Max. lifting force | kN | 50 | ||||
