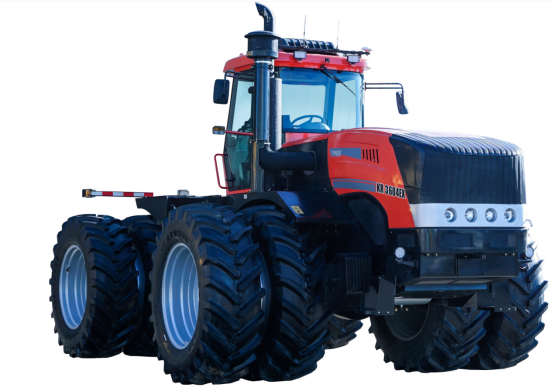

KR3604EX Tractor Configurationsand Specifications
KR3604EX | Yuchai electronic fuel injection engine with six cylinders, turbocharger, inter-cooling, rated power ：265 kW. fully enclosed cab with air conditioner and heater. ‘Fast’ transmission case with 24 forward and 12 reverse gear, synchronizer shift. Articulated chassis frame, driving system with modularized structure, construction machinery front and rear axle, caliper disc brake, double front and rear tyre as standard configuration, full hydraulic articulated steering, 5 groups 120L/min.+1 group 170L/min.,of dual action hydraulic output, Proportional control, controllable time and flow rate, lock and floating position. Bosch Rexroth variable piston pump, LS valves, hydraulic system. Proportional valve electronic control output system, electrical lifting system. 230L/min., 21Mpa. 2 fast return port. 2 group Pneumatic output lines, one is constant, the other on is controlled by brake pedal. Two electric sockets, one hand operation Fast hydraulic coupling with oil collector. |
Model | KR3604EX | ||
Engine | Rated Power/speed | kW(HP)/r/min | 265（360）/2100 |
Engine Displacement | 10.98 | ||
Drive Type | / | 4×4 | |
Dimension(Length/Width/Height) | mm | 8100/4290/4100 | |
Wheel Base | mm | 3911 | |
Track(Front wheel) | mm | 2802 (double tyre) | |
Min. Ground Clearance | mm | 450 | |
Min. turning radius | mm | 7160 | |
Machine Weight | kg | 18630 | |
Rated Traction Force | kN | 94 | |
Max. Traction Force | kN | 141 | |
Max. Traction power | kW | 198 | |
No. of gears | 24F+12R | ||
Forward Gear | Speed | km/h | 1.5-34.2 |
Reverse Gear | Speed | km/h | 1.4-21.5 |
Tyre Model | Front Tires | / | 650/70R42 |
Rear Tires | / | 650/70R42 | |
Max. Lifting Force | kN | 52 | |
Fuel tank capacity | 1000 | ||
Hydraulic tank capacity | (L) | 255 | |
Front ballast | Kg | 800 | |
Voltage | (V) | 24 | |
