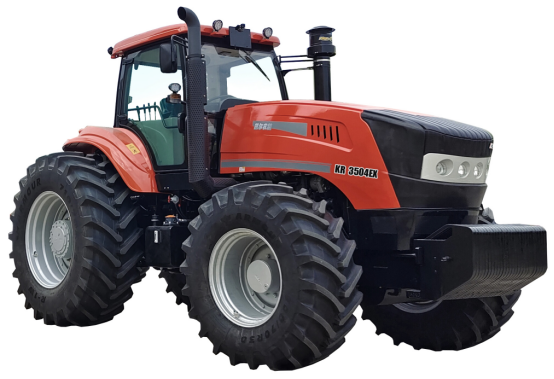

KR3504EX Tractor Specifications and Configures
KR3504EX | Shangchai six cylinder engine, turbocharger, inter-cooling, rated power: 257.5kw, fully enclosed drive cabin, air heater, air conditioner, self developed Transmission, 16F+4Rgears, synchronizer shift, unit frame chassis, driving system with modularized structure, famous international brand front axle，construction machinery rear axle, caliper disc brake, power output shaft rotation speed: 540/1000r/min, fully hydraulic front wheel steering, three groups of single/dual action hydraulic output, plough depth control method by position, floating control, and suspension mechanism of rear-mounted Category IV. Options: Piston pump and LS valves hydraulic system (electrical lifting, Proportional valve electronic control output system. 4 groups 120L/min dual action hydraulic output, Proportional control, controllable time and flow rate, lock and floating position. 200L/min., 21Mpa. fast return port, Pneumatic output lines, Fast hydraulic coupling.) double rear tyre, electrical lifting system, FJ Dynamics. |
Model | KR3504EX | ||
Engine | Rated Power/speed | kW(HP)/r/min | 257.5(350)/2200 |
Engine Displacement | 8.82 | ||
Drive Type | / | 4×4 | |
Dimension(Length/Width/Height) | mm | 5980/2946/3380 | |
Wheel Base | mm | 3050 | |
Track(Front wheel) | mm | 2160 | |
Track(Rear wheel) | mm | 2236 | |
Min. Ground Clearance | mm | 520 | |
Min. Turning Radius | mm | 8000 | |
Machine Weight | kg | 11308 | |
Rated Traction Force | kN | 59 | |
Max. Traction Force | kN | 89 | |
No. of gears | 16F+4R | ||
Forward Gear | Speed | km/h | 4-39 |
Reverse Gear | Speed | km/h | 5-33 |
Tyre Model | Front Tires | / | 600/70R30 |
Rear Tires | / | 710/70R42 | |
Power-output shaft Type | / | Rear position, independent | |
power-output shaft rated Speed | r/min | 540/1000 | |
Max. Lifting Force | kN | 74 | |
Fuel tank capacity | 510 | ||
Hydraulic tank capacity | (L) | 80 | |
Front ballast | Kg | 1300 | |
Voltage | (V) | 24 | |
