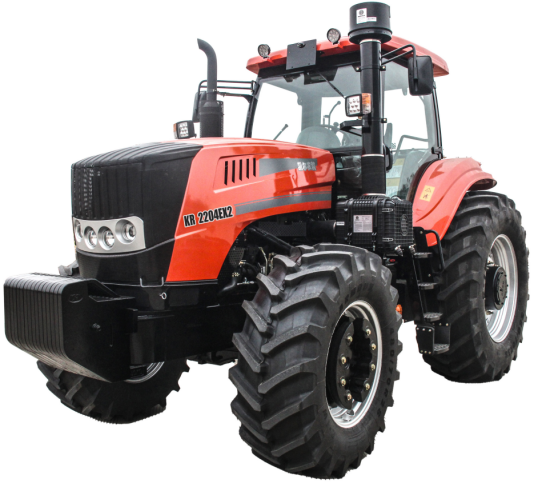

KR2204EX2
Shangchai six cylinder engine, turbocharger, inter-cooling, 12 hours rated power:176.5kw, fully enclosed cab, air heater, air conditioner, Fast transmission, 27F+9R gears, synchronizer shift, unit frame chassis, driving system with modularized structure, famous international brand frontaxle, c
Order Online Download

Features
Parameter

KR2204EX2 Tractor Configurations and Specifications

KR2204EX2

Weichai six cylinder engine, turbocharger, inter-cooling,rated power: 162kw, fully enclosed cab with front/rear camera, air heater and air conditioner, transmission: 16F+4Rgears, synchronizershift, unit frame chassis, driving system with modularizationstructure, international brand front axle, construction machinery rear axle, radial tyre, single rear tire, caliper disc brake, replaceable PTO shaft,PTO shaft rotation speed: 540/1000r/min, fully hydraulic front wheel steering, four groups hydraulic output, plough depth control method by position, floating control, and international brand suspension mechanism of rear-mounted Category III. Option: Dual rear tyre, Electrical lifting system, auto-steering system, creeper gear, wide tyre420/70R28；580/70R38, wide tyre 540/65R28，650/65R38, dual rear tyre,

Model			KR2204EX2
Engine	Rated Power/speed	kW(HP)/r/min	162(220)/2200
	Engine Displacement	(L)	6.75
Drive Type		/	4×4
Dimension(Length/Width/Height)		mm	5730/2390/3070
Wheel Base		mm	2728
Track(Front wheel)		mm	1814 -2220
Track(Rear wheel)		mm	1860 - 2384
Min. Ground Clearance		mm	500
Min. Turning Radius		mm	5100
Machine Weight		kg	8280
Rated Traction Force		kN	43
Max. Traction Force		kN	65
No. of gears			16F+4R
Forward Gear	Speed	km/h	3-31
Reverse Gear	Speed	km/h	5-26
Tyre Model	Front Tires	/	16.9R28
	Rear Tires	/	20.8R38
Power-output shaft Type		/	Rear position, independent
power-output shaft rated Speed		r/min	540/1000
最大提升力Max. Lifting Force		kN	44
Fuel tank capacity		(L)	280
Hydraulic tank capacity		(L)	57
Front ballast		Kg	600
Front wheel ballast		Kg	200
Rear wheel balast		Kg	400
Voltage		(V)	12
